The CS-MI-PL type magnetostrictive liquid level gauge is a high-precision displacement measurement sensor developed using the magnetostrictive principle. This gauge can simultaneously measure the liquid level, interface, and temperature of a liquid storage tank.

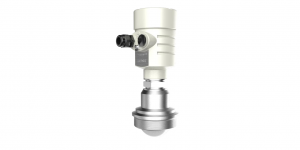

The CS-MI-PH radar level gauge for liquid storage tanks uses 1Ghz micro-power electromagnetic waves, 26Ghz high-frequency waves, and 80Ghz continuous frequency-modulated waves.

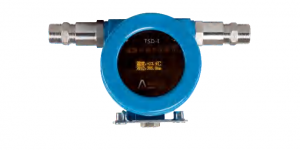

Tank Front Display installed at the bottom of the storage tank to display liquid level information, average density, average temperature, etc., which is convenient for on-site inspection of oil depot. In the mixing metering system, pressure transmitter can be connected.

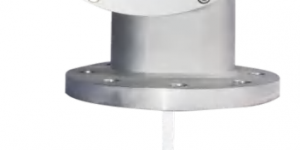

The online automatic meter for storage tanks, also known as a multi-functional servo level gauge, is the latest generation of metering-grade servo level gauges.

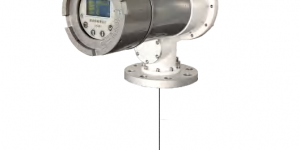

The servo level meter is a high-precision measuring instrument that can measure liquid levels, density, and oil-water interfaces. It can be integrated with multi-point average temperature meters, pressure transmitters, and tank-side displays, serving as the core of the automatic measurement management system for storage tanks.

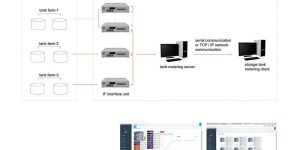

The storage tank metering system is based on the online data of the storage tank, combined with the dynamic model of the storage tank, and automatically calculates the information of the medium temperature distribution, density distribution, inventory, and transfer volume.

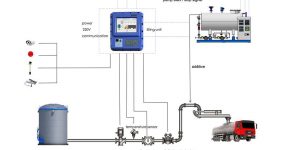

The automatic loading system of oil depot provides customers with intelligent solutions for self-service unattended in the whole process of storage, loading and out of storage.
Steel structure oil loading and unloading wharf is a specialized facility for oil tank trucks or oil tank trains to carry out upper loading and unloading operations of petroleum and its products. All components are made of structural steel materials
The sealing of floating discs …
Aluminum hexagonal internal floating disc structure: it is a bionic mesh structure, and the floating elements are embedded in the skeleton to enhance the strength of the whole floating disc structure. It has the advantages of high structural strength and low operating cost.
